• CM-FS-C Flexible Coupling

Product Description

Selection Elements

  1. Torque: The transmission torque should be 1/2 of the coupling torque, for example, the transmission torque is 3N. m, 6N. M coupling should be selected.
  2. Twisting and rigidity: Flexible couplings can absorb deflection angle, axial displacement and parallel deviation. High-rigidity couplings do not have this performance, so the precision of the shaft end is relatively high.
  3. With or without backlash
  4. Maximum speed
  5. Safety of machine protection
  6. Whether the bore diameter is applicable
  7. Vibration resistance
  8. Applicable occasions

Product Feature

  • One piece, compact
  • Zero backlash
  • High rigidity
  • Better deflection error
  • Suitable for encoder, small power transmission mechanism, high precision transmission
  • Stainless steel material has better torque
  • Stainless steel material is more suitable for clean rooms
  • Fixing method: Clamping type

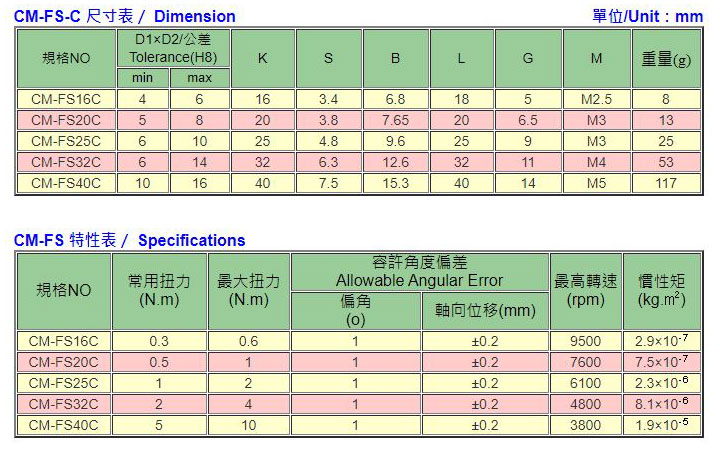

Product Specification
