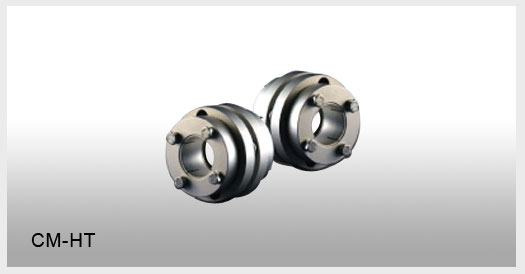

• CM-HT

Product Description

Selection Elements

  1. Torque: The transmission torque should be 1/2 of the coupling torque, for example, the transmission torque is 3N. m, 6N. M coupling should be selected.
  2. Twisting and rigidity: Flexible couplings can absorb deflection angle, axial displacement and parallel deviation. High-rigidity couplings do not have this performance, so the precision of the shaft end is relatively high.
  3. With or without backlash
  4. Maximum speed
  5. Safety of machine protection
  6. Whether the bore diameter is applicable
  7. Vibration resistance
  8. Applicable occasions

Product Feature

  • Low inertia and zero backlash
  • With cushioning and anti-vibration function
  • Cone fixing method is safe and reliable
  • Suitable for servo motor or precision positioning transmission
  • Maintenance-free and long life
  • Lightweight aluminum alloy body

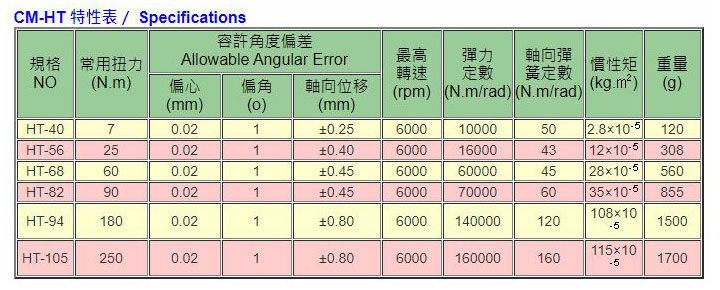

Product Specification
