Product Description Selection Elements Torque: The transmission torque should be 1/2 of the coupling torque, for example, the transmission torque is 3N. m, 6N. M coupling should be selected. Twisting and rigidity: Flexible couplings can absorb deflection angle, axial displacement and parallel deviation. High-rigidity couplings do not have this performance, so the precision of the shaft end is relatively high. With or without backlash Maximum speed Safety of machine protection Whether the bore diameter is applicable Vibration resistance Applicable occasions

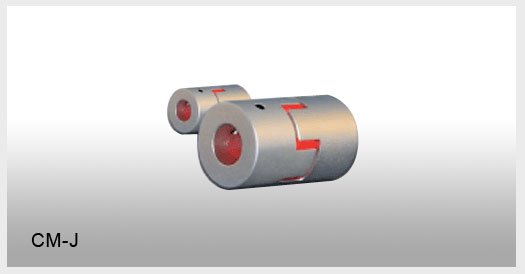

Product Feature High torque, high rigidity High forward and reverse characteristics Low inertia Suitable for servo motors or precision positioning transmission Maintenance-free, long life Set screw fixing type Body: Aluminum alloy material Operating temperature range: -20°C~80°C
