• CM-HL

Product Description

Selection Elements

  1. Torque: The transmission torque should be 1/2 of the coupling torque, for example, the transmission torque is 3N. m, 6N. M coupling should be selected.
  2. Twisting and rigidity: Flexible couplings can absorb deflection angle, axial displacement and parallel deviation. High-rigidity couplings do not have this performance, so the precision of the shaft end is relatively high.
  3. With or without backlash
  4. Maximum speed
  5. Safety of machine protection
  6. Whether the bore diameter is applicable
  7. Vibration resistance
  8. Applicable occasions

Product Feature

  • High rigidity
  • High torque
  • Low inertia
  • Zero backlash
  • Suitable for machine tool, high-precision transmission unit
  • Buffer material: Stainless steel elastic sheet
  • Fixing method: Clamp type

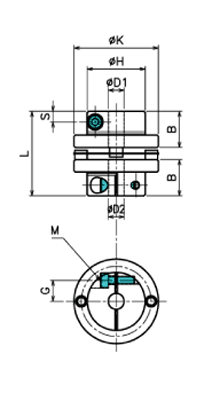

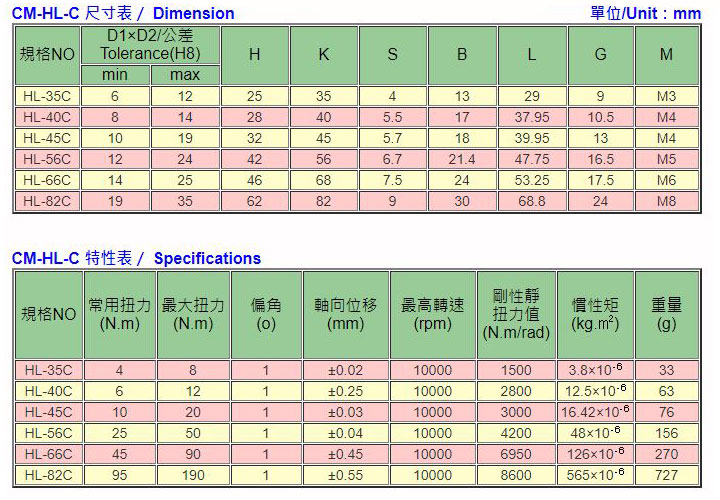

Product Specification
