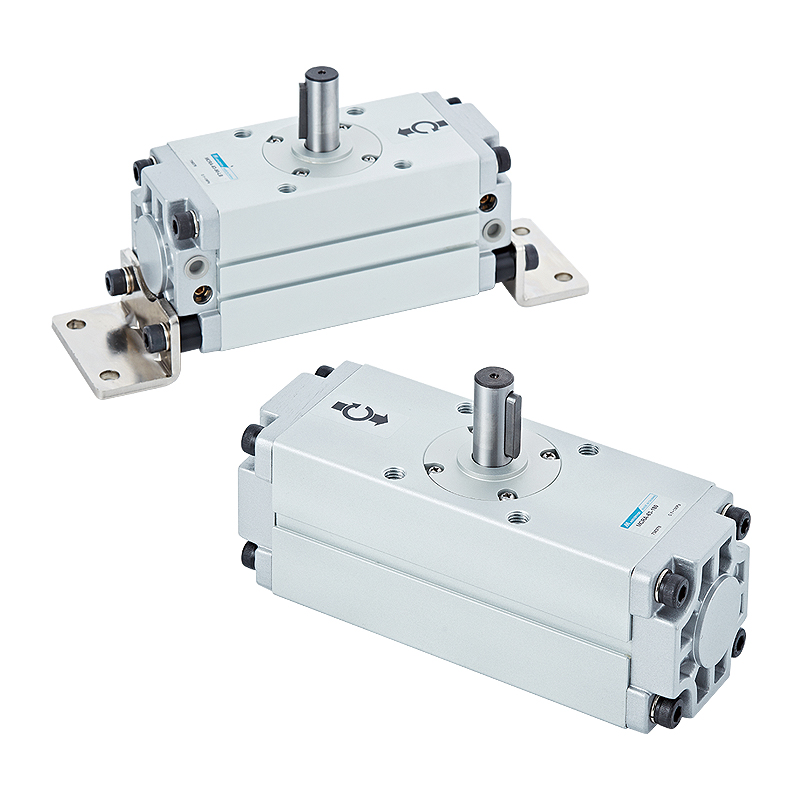

• MINDMAN MCRA Rotary Actuator
  • MINDMAN MCRA Rotary Actuator

Product Feature

  • The size of the body is smaller than the previous model
  • Compact profile design.
  • Easy to adjust sensor postion.
  • Magnetic as standard.

Product Specification

Acting type Double acting
Tube I.D. (mm) 63
Port size Rc1/8
Medium Air
Operating pressure range 0.1~1 MPa
Proof pressure 1.5 MPa
Ambient temperature －5℃~＋60℃ (No freezing)
Lubricator Not required
Cushion air cushion
Allowable kinetic energy 1.5J (air cushion)
Sensor switch RCB, RCE, RCE1, RDEP
Weight 90° (2.7 kg),180° (3.1 kg), LB (0.4 kg)
