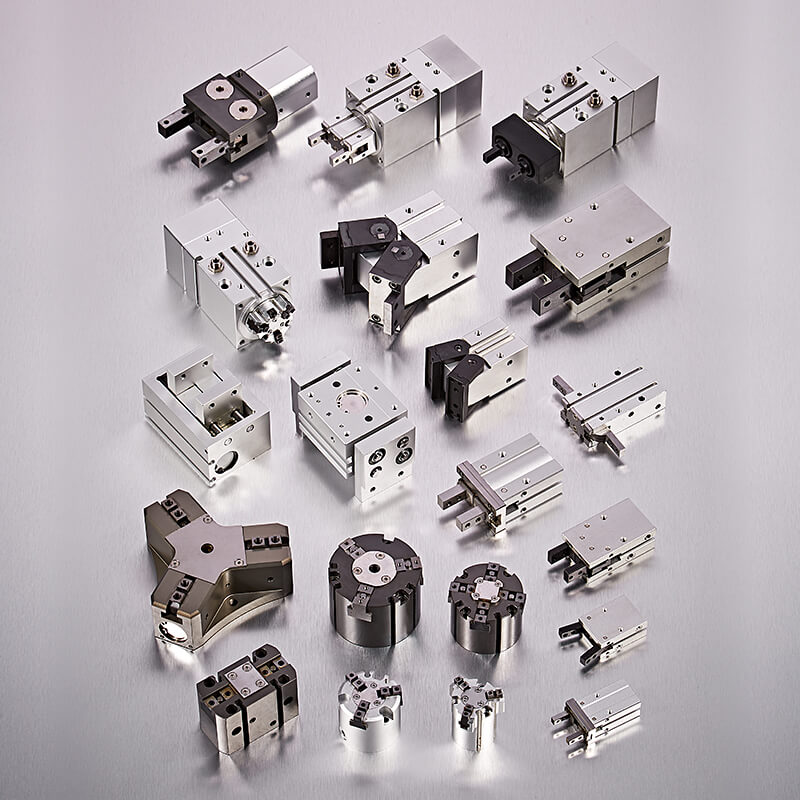

| Acting type |
Double / Single acting |
| Tube I.D. (mm) |
12, 16, 20, 25, 32 |
| Port size |
M3×0.5, M5×0.8 |
| Medium |
Air |
| Operating pressure range |
Double acting: 0.15~0.7 MPa
Single acting: 0.2~0.7 MPa |
| Max.operating frequency |
180 /min |
| Ambient temperature |
－5℃~＋60℃ (No freezing) |
| Lubricator |
Cylinder: Not required, Lever: Grease (Actuation at) |
| Max arm length (L) mm |
30, 40, 60, 70, 85 mm |
| Theoretical holding force (M) kgf-cm |
Closed side:8~100 N, Opened side:5~8 5N (※) |
| ever open / Close stroke |
6, 8, 12, 14, 16 mm |
| Sensor switch |
RDE, RDE-D: Non-contact |
| Weight |
Double acting: 66g, 144g, 255g, 419g, 719g
Single acting: 66.5g, 145g, 257g, 422g, 722g |
| 備註 |
※ Gripping point length L=30mm, Pressure=0.5 MPa. |
